- Deliver a powerful punch to operate single-acting or double-acting cylinders.
- Integral roll cage protects pump from abuse.
- 1 hp (0,75 kW), single phase, permanent magnet motor.
- High performance to weight ratio.
- 即使电压降低到名义额定值的50%,也要在满载下开始。
- Quit operations: 82 dBA @ 10,000 psi (700 bar) and 87 dBA @ 0 psi (0 bar). CSA rated for intermittent duty.
- 遥控器和/或电磁阀具有24伏控件。
螺栓系统Products - Pumps
High Force Tools & Bolting Equipment/ Controlled Bolting
700 bar(10,000 psi)经典系列电力泵
特征

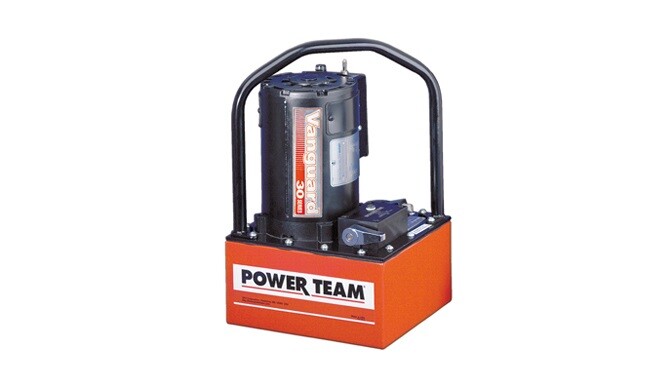

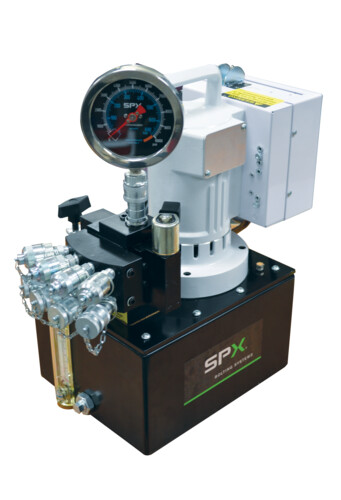

- 704 cu. In./min. Vanguard® series torque wrench pump.
- 10,000 psi (700 bar) classic series electric hydraulic pump the PE55TWP-BS has been the market leading electric pump for over 30 years & is therefore tried & tested.
- 一种简单,轻巧的设计,并具有最近的升级,它创建了一个具有成本效益的主力。
- Quality means lower life-cycle costs: over 100,000 cycles continuous duty up to 122°f (50°c) ambient
- proven design = proven reliability
- enhanced usability:
- two-speed high-performance pump
- retract side internal relief valve protects tool
- Use with single or double acting tools.
- Not for lifting applications 4" calibration capable gauge
- 考虑到安全:
- Easily adjusted pressure regulator (relief) valve
- Has a retract port pressure selector 10,000 psi (1,500)
- this system should not be used for lifting applications.

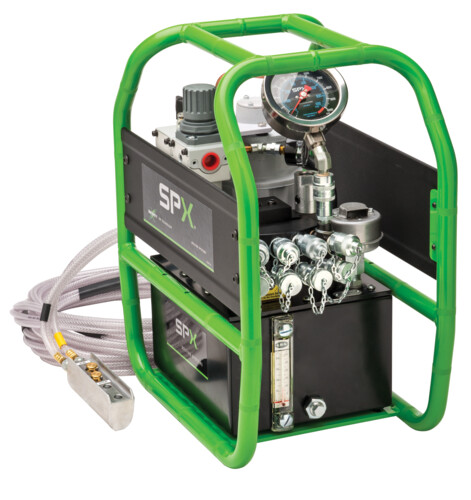

700 bar(10,000 psi)经典系列空气液压泵
特征
The RWP55-BS has been the market leading pump for over 30 years & is therefore tried & tested. A simple, light-weight design with a recent upgrade that has created a cost-effective workhorse.
Quality means Lower Life-Cycle Costs:
- 超过100,000个周期
- 连续税高达50°C(122°F)环境
- 经过验证的设计=可靠的可靠性
Enhanced Usability:
• Powerful 3 hp motor starts under load
•缩回侧内浮雕阀保护工具
• Use with single or double acting tools. Not for
提升申请
• 4" calibration capable gauge
考虑到安全:
• Easily adjusted pressure regulator (relief) valve
• Has a retract port pressure selector 103 or 700 bar
(1,500或10,000 psi)

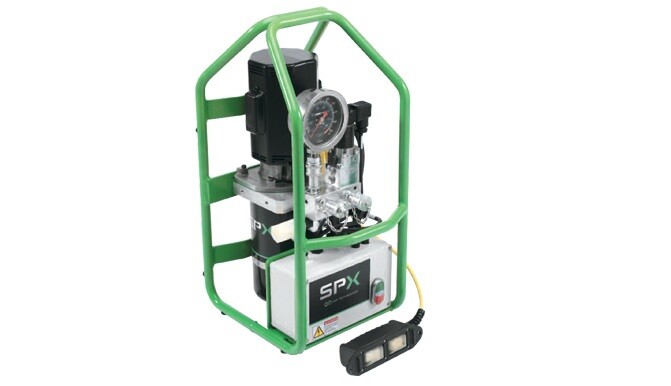

700 Bar (10,000 PSI) COMPACT ELECTRIC TORQUE WRENCH PUMP
特征
Newly designed compact pump incorporates new proven pump design for reliable operation in rugged torque wrench applications.
- 10,000 psi (700 bar) compact electric torque wrench pump the pe39 is compact and capable of being used in a vertical or horizontal orientation.
- Based on proven pump design for reliability in rugged torque wrench applications to support operation and maintenance requirements.
- 超过100,000个周期
- 持续职责up to 122˚F (50˚C) ambient
- Proven design = proven reliability
- 轻巧和便携式:39磅(17.7千克)
- Removable control pendant (15 ft / 5 m cord length)
- Removable 4" (100 mm) calibration-capable gauge
- 通用电动机用于降低电压应用(最高-20%的名义电压)
- 垂直或水平运行
- Easy install cooling fan as option
700 bar(10,000 psi)无限系列(ISP)气泵
特征
SPX yabo体育首页Flow PA60A是一个无穷大的气泵,通过为典型2级泵的速度提供连续压力,可以提高作业的生产率。工作变得更快,更容易。
Quality means Lower Life-Cycle Costs:
- 超过100,000个周期
- 连续税高达50°C(122°F)环境
- 经过验证的设计=可靠的可靠性
Enhanced Usability:
- Light weight and portable: 77 lb (34.9 kg) [without oil] PA60APF5FP
- Light weight and portable: 88 lb (40.1 kg) [without oil] PA60APF5FMPR
- Removable control pendant (25 ft / 7.6 m)
- Removable 4" (100 mm), calibration-capable gauge
- CE
- ATEX EX II 2 GDC T4
- 4 port manifold available to power up to 4 tools from a single pump (not for lifting applications)
- Fewer parts for lower service cost
考虑到安全:
- Easily adjusted pressure regulator (relief)

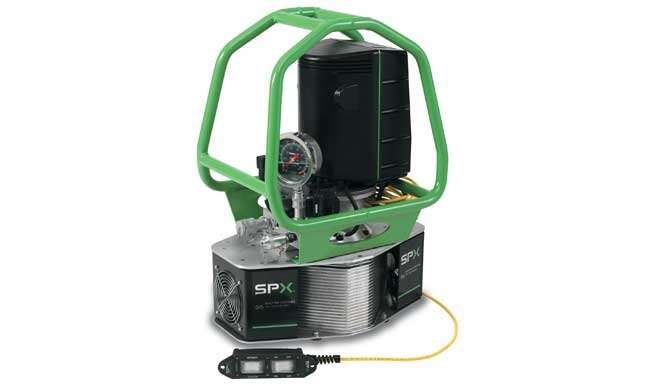

700 bar(10,000 psi)无限系列(ISP)电动泵
特征
无限级泵(ISP)结合了技术,使其成为提高工作生产率的绝佳选择。
- 10,000 psi(700 bar)Infinity系列(ISP)电动泵SPX Flow PE45是无限级电动泵,通过提yabo体育首页供连续压力的最多是典型2级泵的速度两倍,从而提高了工作的生产率。
- 工作变得更快,更容易。
- over 100,000 cycles
- continuous duty up to 122°f (50°c) ambient
- proven design = proven reliability
- enhanced usability: light weight: 71 lb (32.2 kg) [without oil]
- removable control pendant (15 ft / 5 m)
- 可移动(4英寸)100毫米,可校准能力仪表
- universal motor for reduced voltage applications (up to -20% nominal voltage)
- 4 tool manifold available powers up to 4 tools from a single pump (not for lifting applications)
- high flow to get work done faster
- 考虑到安全:
- easily adjusted pressure regulator
- (浮雕)阀固定1,500 psi(103 bar)缩回浮雕阀压力
700 bar(10,000 psi)经典系列电力泵
特征

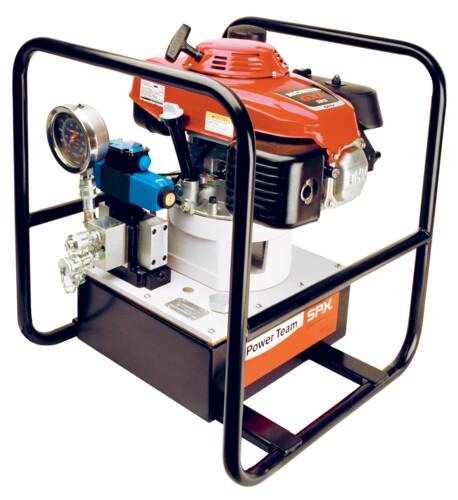

Gasoline-powered pump for use in remote locations where electricity or compressed air are not readily available. Operates on a powerful 5.5 hp Honda OHV-type engine.
Quality means Lower Life-Cycle Costs:
- High quality, reliable gasoline engine
- 持续职责
- Proven design = proven reliability
Enhanced Usability:
- 空气冷却4冲程发动机
- Uses standard unleaded gasoline
- 大容量,多室排气系统,以降低噪音
考虑到安全:
- Fixed 48 bar (700 psi) Unload Valve
- Frame allows for easy two-man carry
典型用途:
- 法兰拉斯特,扭矩扳手,螺母弹头
- Self priming, 2-speed operation
- 2.24 kw (3 hp) Air motor (50 CFM)
- 700 bar (10,000 psi) maximum pressure
- 可校准100mm(4英寸)压力表
- Adjustable pressure relief valve
- Flow rate up to 11.8 litres/min (720 cu. in/min)
- 内部油冷却器
- Low noise operation
- 气动过滤器/调节器/润滑器
- 9.5 Litre (2 gal.) Reservoir (optional oil level gauge)
- Carrying frame (WxLxH): 430 x 460 x 460 (mm)
- Weight: 40 Kg (88 lb) (inc. oil)

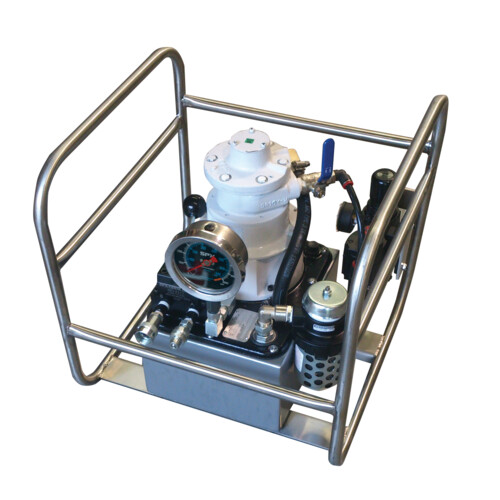

1,500 bar(21,750 psi)顶螺栓张紧器和液压泵
Standard flow tension pump. The corrosion-resistant frame works well for applications near saltwater. Standard flow ideal for land-based (topside) tension applications where the required power source is compressed air.
Quality means Lower Life-Cycle Costs:
- 超过100,000个周期
- 连续税高达122°F(50°C)环境
- 经过验证的设计=可靠的可靠性
Enhanced Usability:
- Calibrated 6" (150mm) Pressure Gauge
- Dual oil outlets with quick-connect, no spill couplings
- 气动过滤器/调节器/润滑器包括
- Stainless Steel carry frame
考虑到安全:
- Easily adjusted pressure regulator valve
- Air pressure safety relief valve

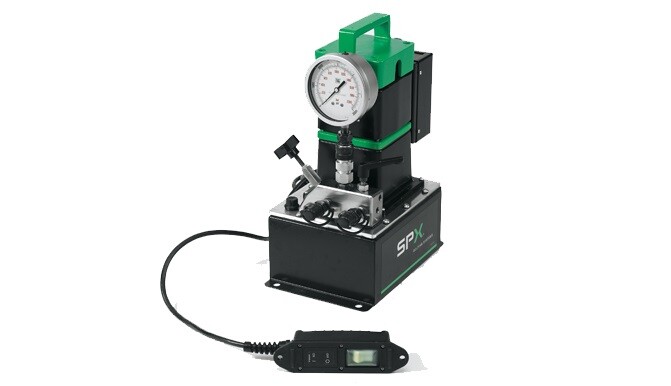

1,500 Bar (21,750 PSI) HIGH PRESSURE ELECTRIC PUMP
特征
这个新设计的电动张泵融合了可靠操作的经过验证的设计。
Quality means Lower Life-Cycle Costs:
- 超过100,000个周期
- 持续职责up to 122˚F (50˚C) ambient
- 经过验证的设计=可靠的可靠性
Enhanced Usability:
- Light Weight and portable: 45.5 lb (20.6 kg) [without oil]
- Quick Release, removable control pendant (15 ft / 5 m)
- 可移动4英寸(100毫米),可校准能力,仪表
- 通用电动机用于降低电压应用(最高-20%的名义电压)
- SPX Tensioners are designed to daisy-chain together so multiple tools can run off one pump
- Compact design fits into tight spaces
考虑到安全:
- Easily adjusted pressure regulator (relief) valve.

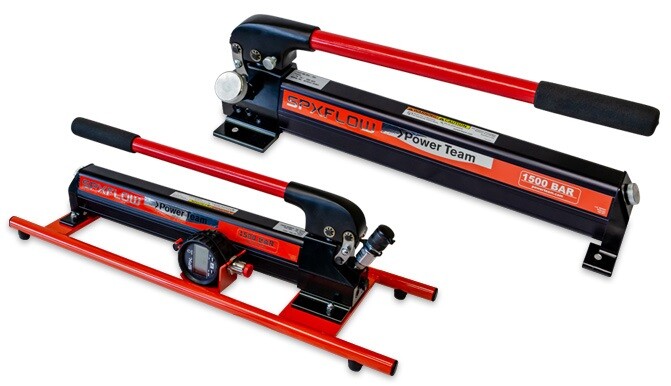

1,500 Bar (21,750 PSI) HIGH PRESSURE HAND PUMP
特征
- 压力范围-0至1500 bar(0至21,750 psi)
- Two-speed design reduces handle effort by 40%
- Fiberglass handle provides rigidity, and reduces operator fatigue with grip.
- Convenient fill port enables pumps to be filled in a horizontal or vertical position.
- 填充盖密封作用是防止储层过度压力的安全阀。
- 大阀旋钮为缓慢计量负载提供了增加的控制。
- P59L-1500G型号带有用于稳定的滑板和数字压力表。
- 非常轻巧,易于使用铝制设计。
